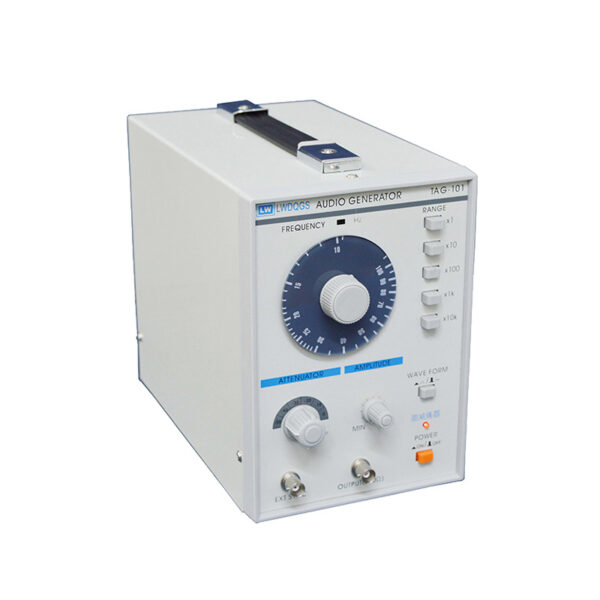

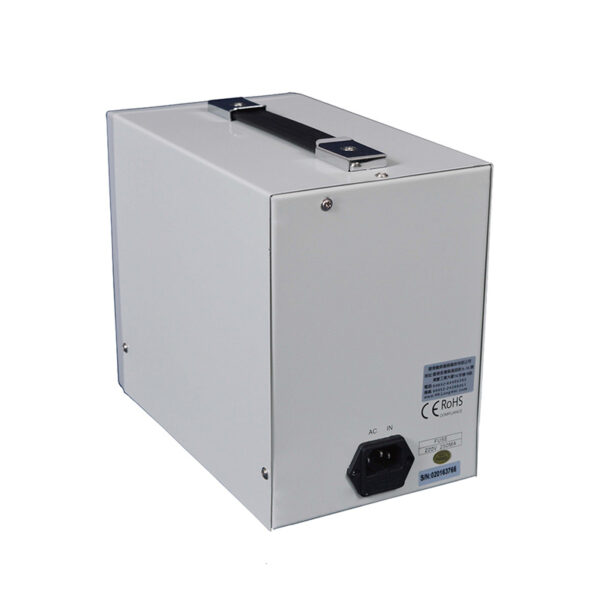

| Model | TAG-101 |
| Frequency range | ×1 Range: 10Hz-100Hz
×10 Range: 100Hz-1kHz ×100 Range: 1kHz-10kHz ×1K Range: 10kHz-100kHz ×10K Range: 100kHz-1MHz |
| Sine wave characteristics | |
| Output voltage | 5V rms or more |
| Output distortion | 400Hz-20KHz, 0.1% or less
(X100 range for 1KHz) 50Hz-500KHz 0.5% or less |
| Output Flatness | ±1.5 dB (refer to 1KHz) |
| Square wave characteristics | |
| Output voltage | 10Vp.p or more |
| Rise time | 0.25 us or less |
| Duty ratio | 50%±5% (refer to 1KHz) |
| External synchronization characteristics | |
| Range±3% of oscillator frequency | |
| Input impedance | 10K approximate |
| Maximum input | 10V rms |
| Output characteristics | |
| Impedance | 600Ω±10% |
| Attenuator | 0dB, -10dB, -20dB, -30dB, -40dB, and -50dB in 6 steps (accuracy +1 dB at 600Ω load) |
| Power requirement | |
| Input | AC 110V or 220V, 50/60Hz |
| Consumption | 5 Watt |
| Dimension | 142×233×197 mm |
| Weight | 3.5Kg |
