L-5040 40 MHz Dual-trace Analog Oscilloscope

L-5040 40 MHz Dual-trace Analog Oscilloscope

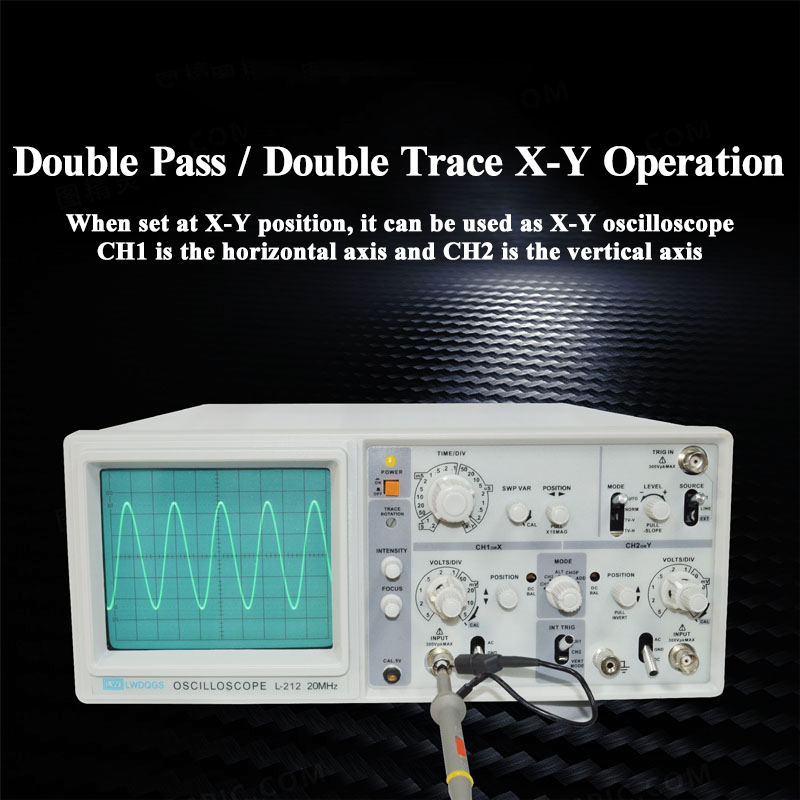

  • Dual Channels/Dual Traces: Enables simultaneous observation of two signals in X-Y mode.
  • 6-Inch High-Brightness Display: Enhanced visibility with a bright oscilloscope tube for clearer readings.
  • High Sensitivity Triggering: Captures signals as low as 1mV/division, providing a sharper display than standard oscilloscopes.
  • TV Synchronization Circuit: Allows stable observation of TV signals for accurate analysis.
  • Multiple Trigger Modes: Offers AUTO, NORM, AV-V, and AV-H triggering options for flexible signal capturing.
  • Vertical Modes: Supports ALT, CHOP, and ADD modes for versatile signal analysis.
  • Adjustable X-Y Settings: X-axis can be set to x10 and Y-axis to x5 for enhanced measurement accuracy.
  • Polarity Reversal: Allows easy switching of signal polarity for comprehensive analysis.
  • CH1 Sync Output: Provides synchronization output from Channel 1 for additional connectivity options.
Product Name: L-5040 Category: Tag:

Description

Model L-5040
Frequency Range DC-40MHz
Screen Resolution 8*10 div(1div=1cm)
Vertical deviation Display Mode CH1 CH2 CH3 ADD ALT CHOP
Toxicity Factor 5mV/div to 5V/div±3%(1mV/div±5%)
Rise Time ≤17.2ns
Polarity Selection ±CH2
Max. Input Voltage 250V (≤1KHz)
Horizontal bias Display Mode 1, 10, X-Y
Time base 0.2us/div~0.2s/div
Sweep width ×10
Accuracy 3%
Correct waveform Frequency 1KHz 20% Voltage: 0.5V 1%
Input constant 1MΩ

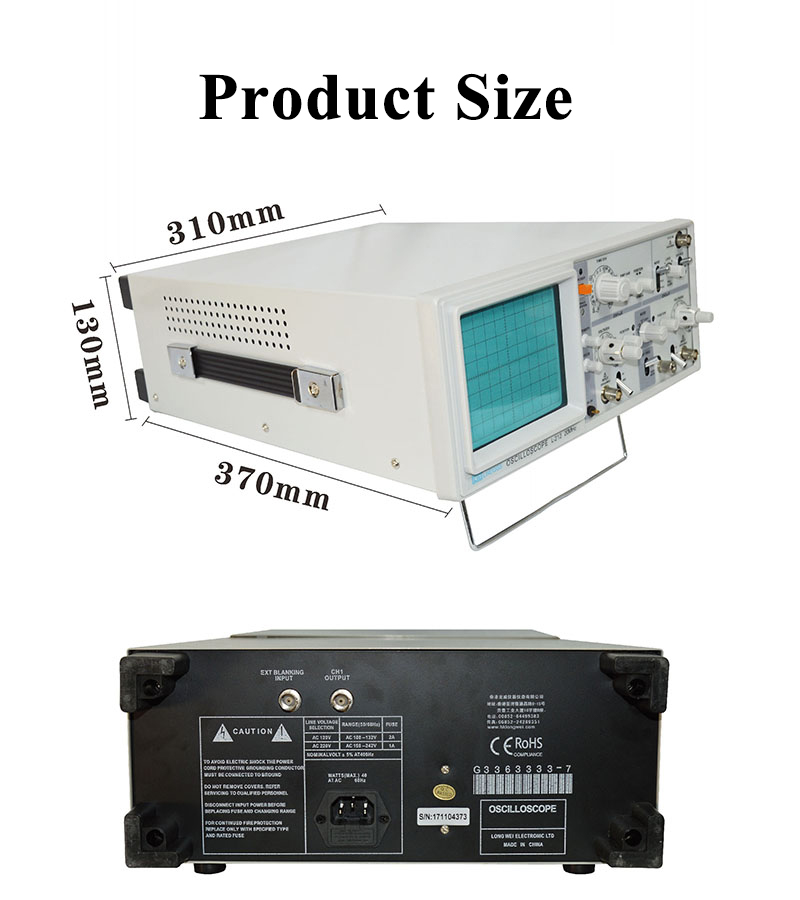

Size 370×310×130 mm
Weight 8Kg
TitleDescriptionSizeDate addedDownload
Longwei Analogue Oscilloscope User Manual EN Version1.04 MB25-07-2023 Download
