Description
| Model | TPR-3005-2KD | |
| Max Voltage | 2 × 30V | |
| Max Current | 2 × 5A | |

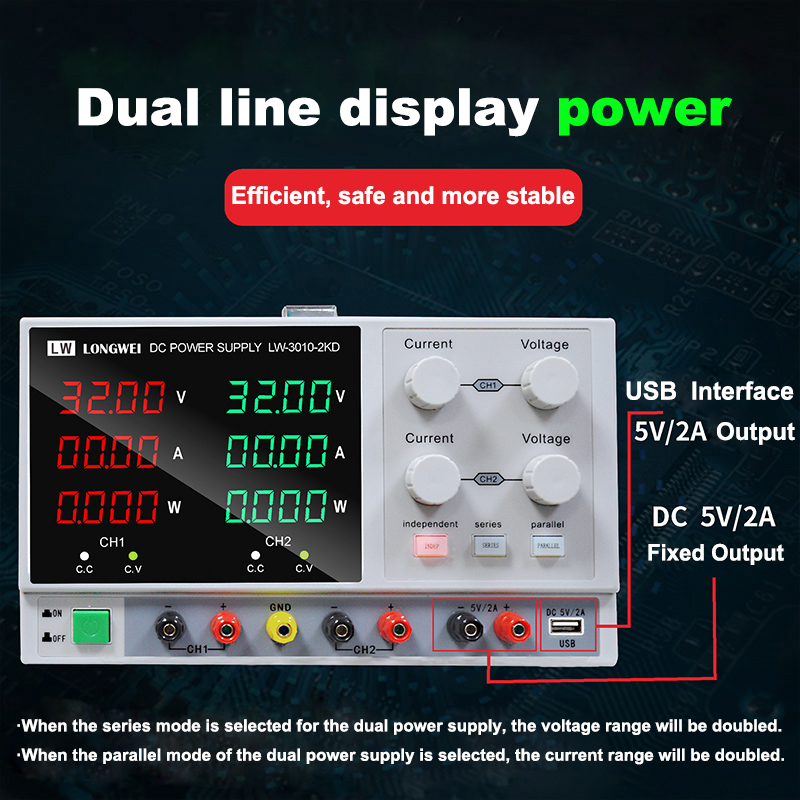

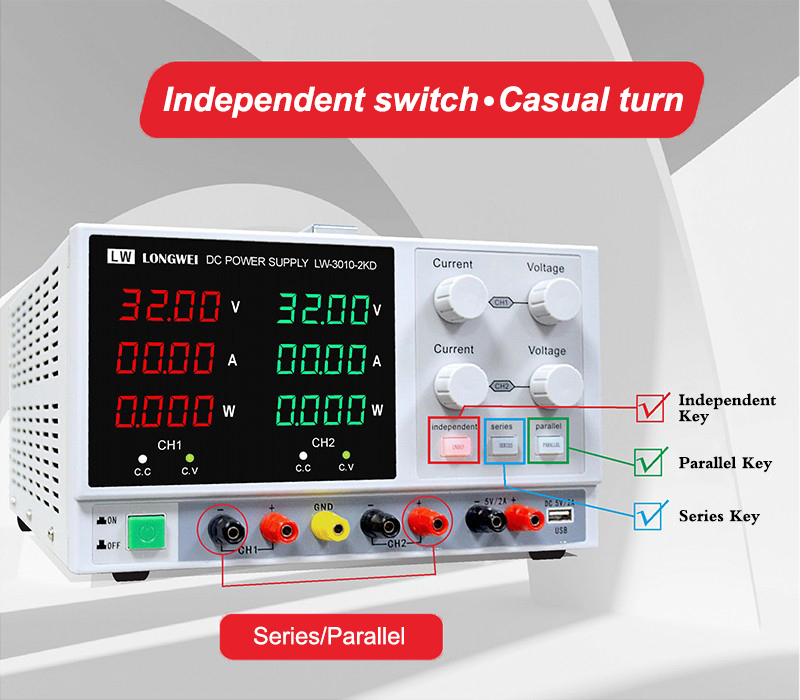

| Series/Parallel Use | Yes/Yes | |
| Adjust Type | Stepless Knob | |
| Input Power | AC 220V 50Hz±2Hz / AC 110V 60Hz±2Hz | |
| Constant Voltage Mode | Current effect | ≤ 0.01%+1mV |
| Load effect | ≤ 0.01%+5mV | |
| Ripples and noises | ≤ 1.0mV r.m.s. | |
| Constant Current Mode | Current effect | ≤ 0.2%+1mA |
| Load effect | ≤ 0.2%+5mA | |
| Ripples and noises | ≤ 6mA r.m.s. | |
| Regular Output | Nominal output voltage | 5V±2.5% |
| Nominal output current | 3A | |
| Current effect | ≤ 0.01%+1mV | |
| Load effect | ≤ 1% | |
| Ripples and noises | ≤ 0.5mV r.m.s | |
| Precision | Voltmeter | ±1%±1 figures |
| Ammeter | ±2%±1 figures | |

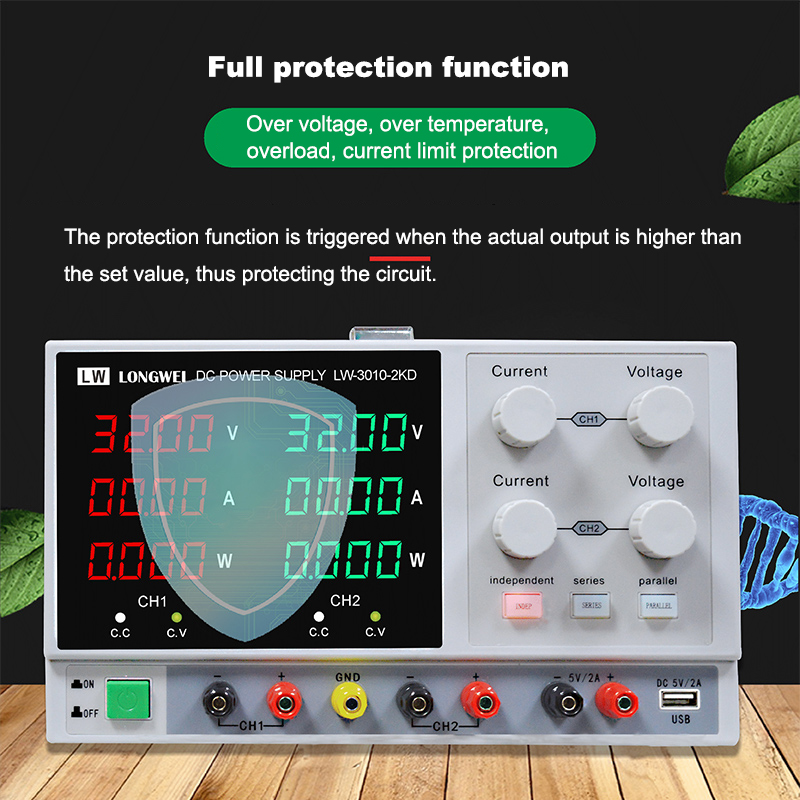

| Protection | OVP,OCP,OLP,OTP | |
| Operating Temperature | 0℃ to 40℃ | |
| Relative Humidity | < 90% | |
| Storage Temperature | -20℃ to 80℃ | |
| Relative Humidity | < 80% | |
| Overall dimensions | 315×260×160 mm | |
| Weight | 5.5kg | |
| Title | Description | Size | Date added | Download |
|---|---|---|---|---|
| Longwei KD Dual Output Series SMPS User Manual EN Version | 261.75 KB | 25-07-2023 | Download |
