LW-90DH 90W Lead-Free ESD Digital Soldering Station
Home
/
Soldering Station
/ LW-90DH 90W Lead-Free ESD Digital Soldering Station

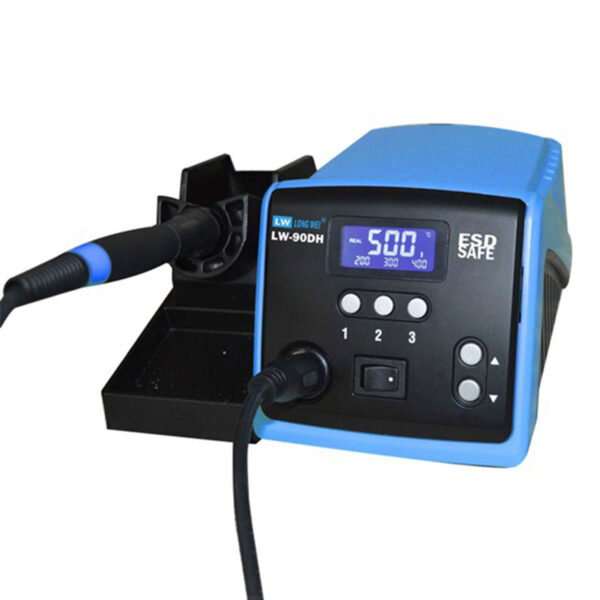

LW-90DH 90W Lead-Free ESD Digital Soldering Station
High-Definition LCD Display
: Equipped with a backlit LCD screen for clear parameter visibility at a glance.
Fast Heating Technology
: Utilizes silver alloy materials for rapid heat conduction, reaching 350°C in just 10 seconds.
User-Friendly Process Control
: Visualization of instructions allows for easy monitoring and control of the soldering process.
Versatile Power Modes
: Offers various power mode controls to adapt to different applications effectively.
Quick Temperature Access
: Three programmable hotkeys enable rapid switching to preferred welding temperatures.
Password Protection
: Secure parameter settings with password locks for controlled production line processes.
Adjustable Sleep Function
: Intelligent sleep mode can be set by users for energy savings and environmental protection.
Buzzer Functionality
: Customizable buzzer options enhance user convenience to meet individual preferences.
Automatic Temperature Calibration
: Software calibration maintains accuracy and consistency over the product’s lifespan.
Cost-Efficient Welding Head Design
: Miniaturized design lowers material costs while ensuring economical consumable usage.
Separable Heating Element
: Separates the heating element from the welding head, reducing operational costs for users.
Dual Cleaning Mode
: Choose between a metal ball or sponge for efficient cleaning of the welding head.
Product Name:
LW-90DH
Category:
Soldering Station
Tag:
Soldering Station
INQUIRY NOW
Specification
Quick Inquiry
Model
LW-90DH
Power
90W
Input voltage
220V AC 50Hz(110Vchoosable)
Output voltage
24VAC
Temperature range
100-500℃(212-932℉)
Calibration temperature range
-50℃~ +50℃(-58℉~ +122℉)
Scope of password
001-999(0 For the unlocked)
Dormancy temperature
200℃
dormancy time
1-99minute(0For not dormant)
Temperature accuracy
+/-10℃
Temperature stability
+/-2℃(Still air, with no load)
Tip over the ground impedance
<2 Ω
Tip over the ground voltage
<2 mV
Dimension
168×110×95mm
Weight
2.0kg
