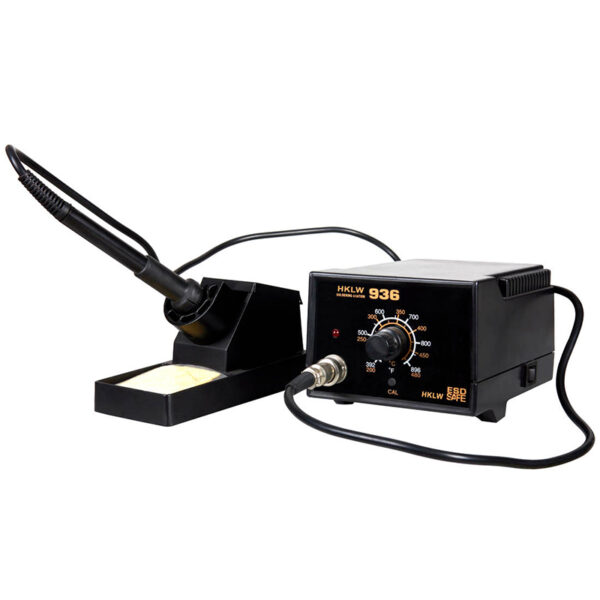

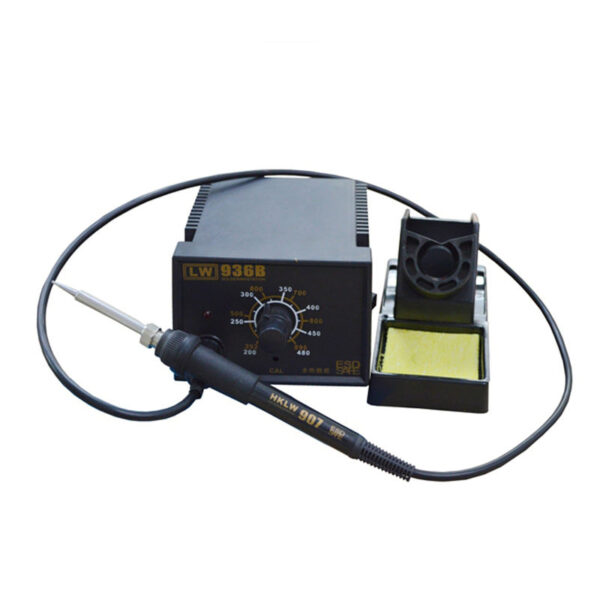

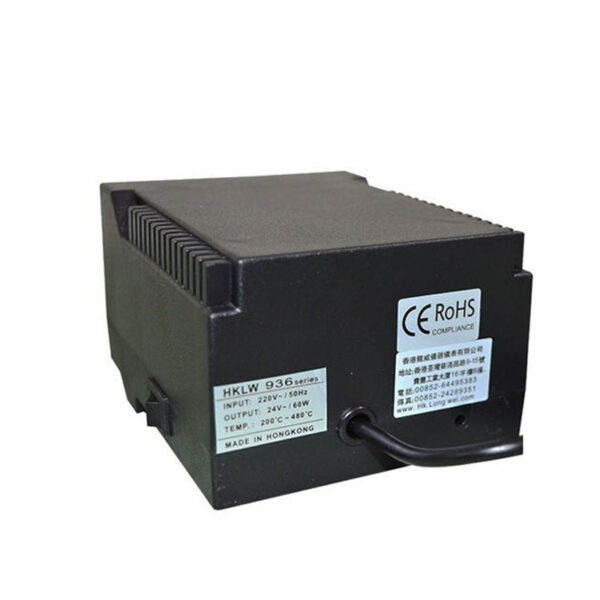

Upgraded LW-936 Lead-Free ESD Safe Soldering Station

Upgraded LW-936 Lead-Free ESD Safe Soldering Station

  • ESD Protection: Constructed from conductive materials, this soldering station is specifically designed to prevent static electricity and keep the workspace clean (ESD safe).
  • Durable Heating Element: Features an imported, high-temperature resistant heating element made with advanced technology for extended lifespan.
  • Low Voltage Operation: Powered by a low-voltage AC source to ensure safety against static, electrical leakage, and interference.
  • Precise Temperature Control: Offers stable and accurate temperature settings ranging from 200°C to 480°C for versatile soldering needs.
  • Fast Heating: Quickly reaches desired temperatures for efficient soldering operations.
  • Lightweight Handle: The ergonomic design of the handle minimizes fatigue during extended use.
  • Fully Isolated Power Supply: The main power supply of the heating element is completely isolated from the power grid for enhanced safety.
  • High-Temperature Cable: The soldering iron is connected to the control station via an aviation connector and high-temperature resistant silicone cable.
  • Temperature Lock Feature: Unique locking mechanism prevents unauthorized temperature adjustments.
  • Modular Design: The separate components allow for easy placement and organization in the workspace.
Product Name: LW-936 Category: Tag:
Model LW-936
Input voltage 220VAC±10% 50Hz
Output voltage 24VAC
Power consumption 60W
Temperature control range 200℃~480℃
Setting mode Knob to adjust
Temperature stability ±5℃(static state)
Display mode Index dial
Max ambient temperature 40℃
Proof mode calibrate simulation
Temperature lock mode Mechanical
Tip over the ground impedance <2Ω
Tip over the ground voltage <5mV
solder tip LW-20-I
PTC 60W Four core ceramic heater
Dimension 270×230×150 mm
Weight 2kg
