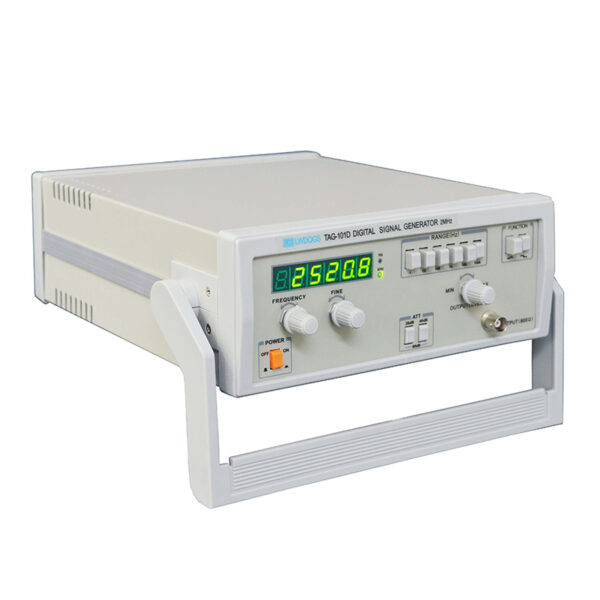

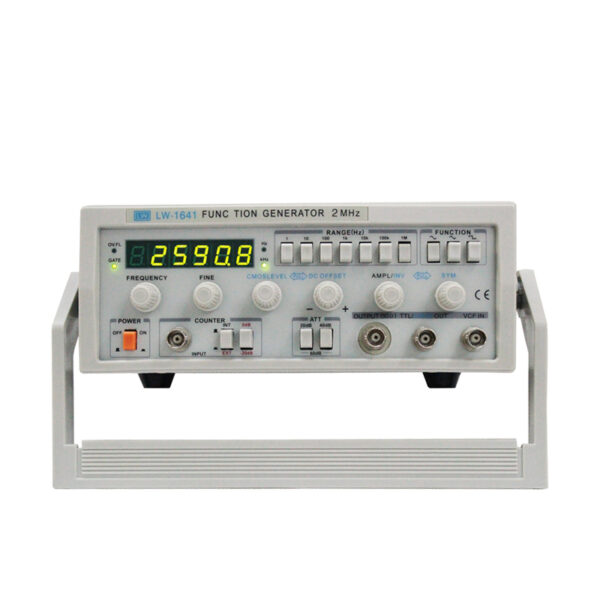

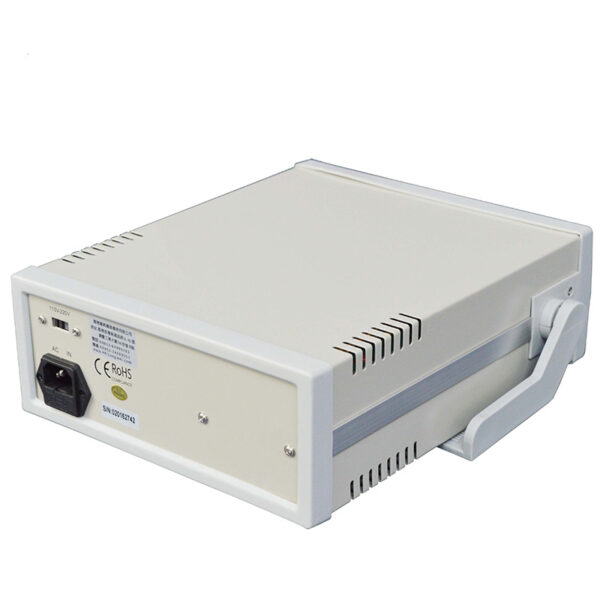

TAG-101D Digital Signal Generator

Name: TAG-101D Digital Signal Generator - 0.1Hz to 2MHz Fully Adjustable for Accurate Testing
SKU: TAG-101D
Price: 80.99 USD
Availability: InStock

Digital Frequency Display: Easy-to-read display for convenient operation.
Versatile Frequency Range: Adjustable across 6 phases from 0.2Hz to 2MHz.
Strong Output Performance: Unloaded output reaches 5V; loaded output exceeds 2V (sine wave) at 600Ω.
Flexible Voltage Control: Two adjustable attenuator groups (-20dB and -40dB) for a total of -60dB, plus a continuous potentiometer.
Selectable Waveform Output: Choose between sine wave and square wave outputs as needed.

Product Name: TAG-101D Category: Signal Generator Tag: Radio Signal Generator

Model	TAG-101D
Frequency range	×1 shift: 0.2Hz-20Hz ×10 shift: 2Hz-200Hz ×100 shift: 20Hz-2KHz ×1K shift: 200Hz-20KHz ×10K shift: 2KHz-200KHz ×100K shift: 20KHz-2MHz
Sine wave nature
Output voltage	5V
Distortion ratio	<0.1% 400Hz-200KHz <0.5% 50Hz-500KHz
Evenness output	±1.5 decibels (about equal to 1KHz)
Square wave nature
Output voltage	> 10V (highest point)
Rising time	<0.25 microseconds (within 200KHz)
Empty occupied ratio	50%±5% (from 1KHz to 200KHz)
The nature of output pole
Output impedance	600Ω±10%
Attenuator	-20dB,-40dB and in 60dB series
Power wastage
Input voltage	Alternating current 110V or 220V for choice
Power wastage	about 10 watts
Dimension	270×225×90 mm
Weight	3.5kg

Title	Description	Size	Date added	Download
Lognwei Digital Low Frequency Generator User Manual EN Version		554.45 KB	25-07-2023	Download
