TSG-17 Radio Signal Generator

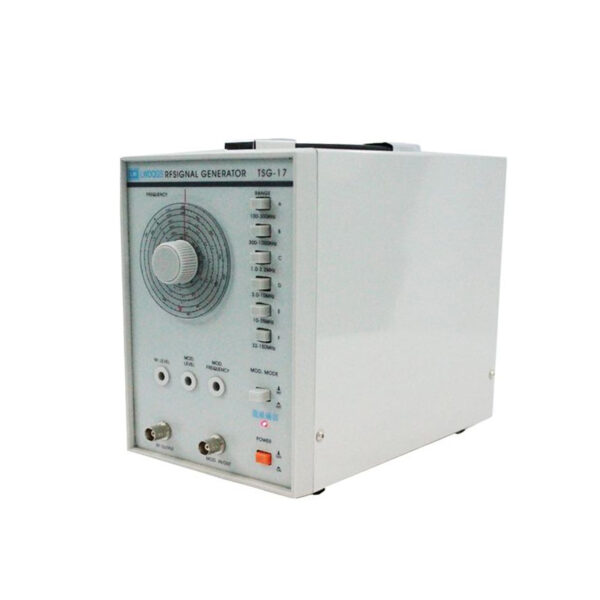

TSG-17 Radio Signal Generator

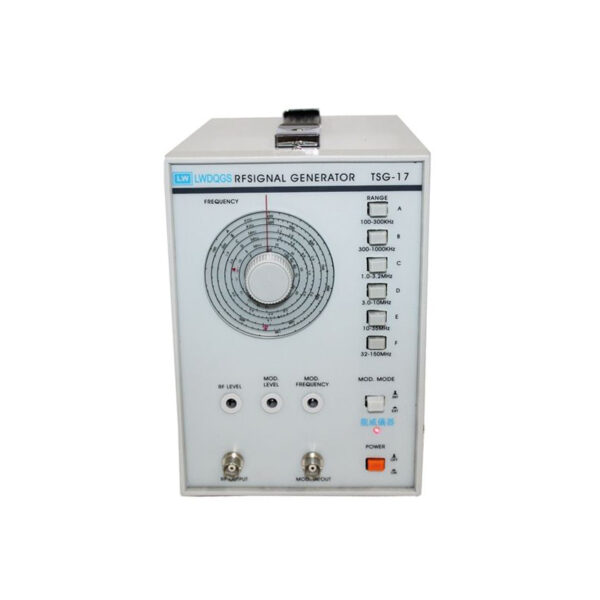

TSG-17 Radio Signal Generator - Image 2

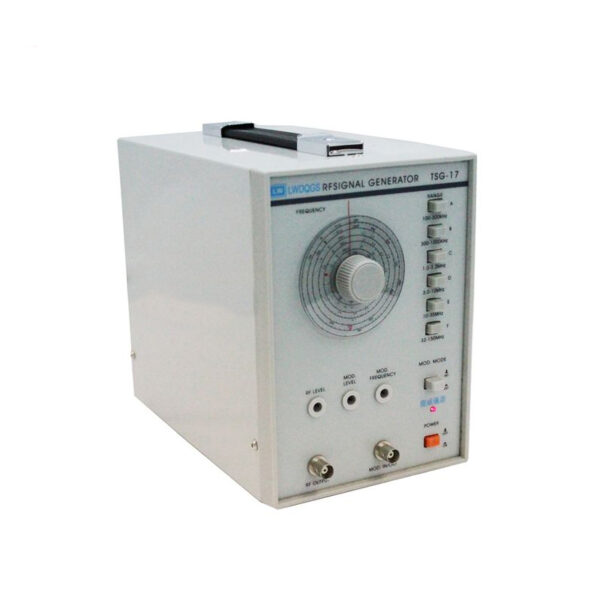

TSG-17 Radio Signal Generator - Image 3

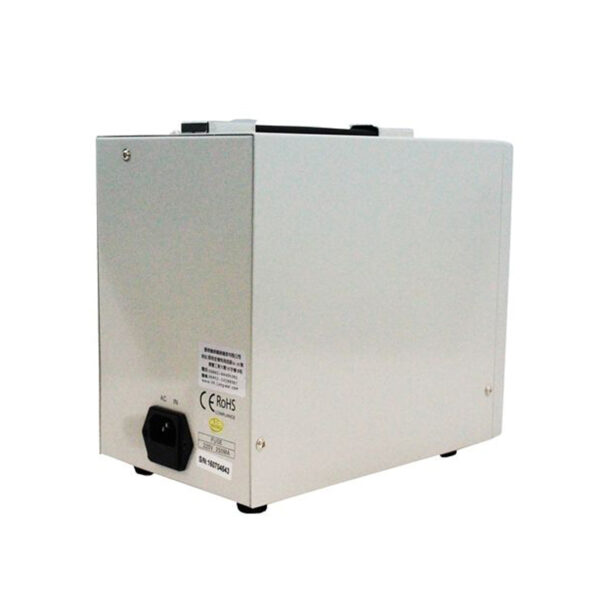

TSG-17 Radio Signal Generator - Image 4

TSG-17 Radio Signal Generator

  • High-Quality Components: Assembled with imported components for minimal accuracy deviation.
  • Wide Frequency Range: Signal frequency spanning from 100 kHz to 150 MHz, with third harmonic support up to 450 MHz.
  • Versatile Output Waveforms: Capable of producing sine waves and amplitude modulation (AM) signals.
  • Modulation Capability: Internal modulation can achieve up to 80%-100% over-modulation within 1 kHz.
  • Powerful Output: RF/AM output with a maximum signal intensity of ≥10 VP-P.
  • Adjustable External Modulation: External modulated signal settings range from 50 Hz to 20 kHz.
Product Name: TSG-17 Category: Tag:
INQUIRY NOW

Description

Model TSG-17
Frequency Ranges  A: 100kHz to 300kHz;
B: 300kHz to 1MHz;
C: 1MHz to 3.2MHz;
D: 3MHz to 10MHz;
E: 10MHz to 35MHz;
F: 32MHz to 150MHz
Frequency Accuracy ±5%
Output Waveform RF/AM signal waveform
Output Impedance 600Ω
0utput Radio Frequency >100Mvrms (when frequency≤35MHz)
Level Control 1mV to100mV
External Modulation 150Hz to 1.5 KHz. Adjustable amplitude from 0 to 30%
Operation Environment 50Hz to 20KHz
Temperature/Humidity 10 ℃ to 35℃/ 85%RH
Power Supply 220V±10%, 50Hz
Dimension 239 x 140 x 200mm
Weight 2.5kg
