Project Description

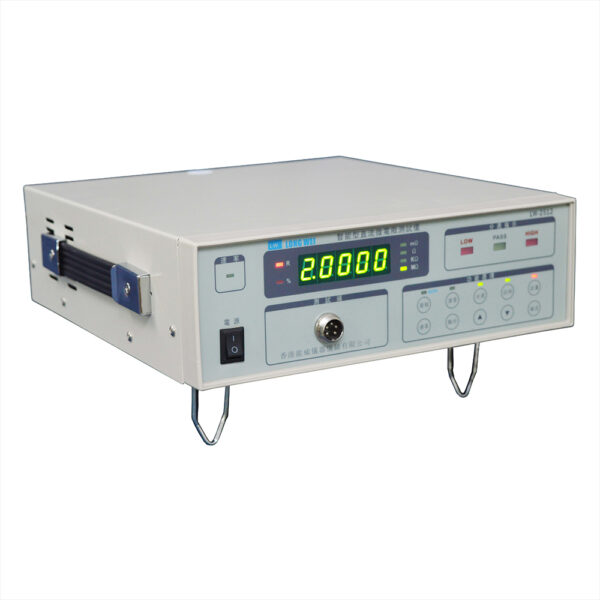

  • LW2512 Front View

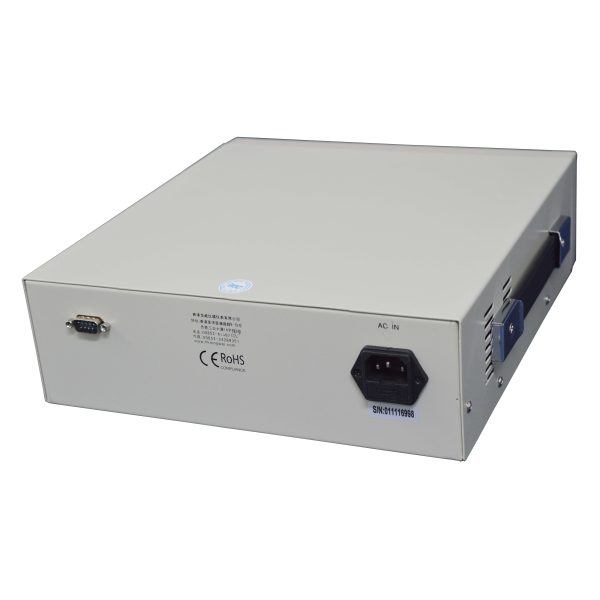

  • LW2512 Back View
  • LW2512 Package

Feature

  1. Resistance test range: 1µΩ-2MΩ nine shift
  2. Variable speed test: 5 times/slow, 10times/fast
  3. Test accuracy: 0.02% ± 2 digits
  4. Display mode: resistance or percentage display
  5. Sorting function: LOW, PASS, HIGH judgement
  6. Two types of judgment: resistance comparison or percentage comparison.
  7. Panel directly reset function
  8. Configuration separation interface and can be optional RS – 232 communication interface
ParameterLW2512LW2512A  LW2512B
Accuracy0.02% ± 2 digits
Range modeAutomatic or manual lock
Test speed5 times/slow, 10times/fast
Test range1µΩ-2MΩ nine shift1µΩ-200KΩ seven shift1µΩ-20KΩ six shift
Test current1µA-1A10µA-1A100µA-1A
Sorting functionLOW,PASS,HIGH Judgment and buzzer – ring
Test terminalFive core air outlet
InterfaceSorting interface
OptionalRS232 COM port
Others
Operating temperature & humidity0-40℃  0-85%RH
Input voltage200-240VAC   50-60Hz
Power Dissipation< 25W
Dimension / weight280×89×280mm / 1.5Kg

Customize Parameter Of Your Own

Customization and small order are aceeptable

Move on and have a quotation
