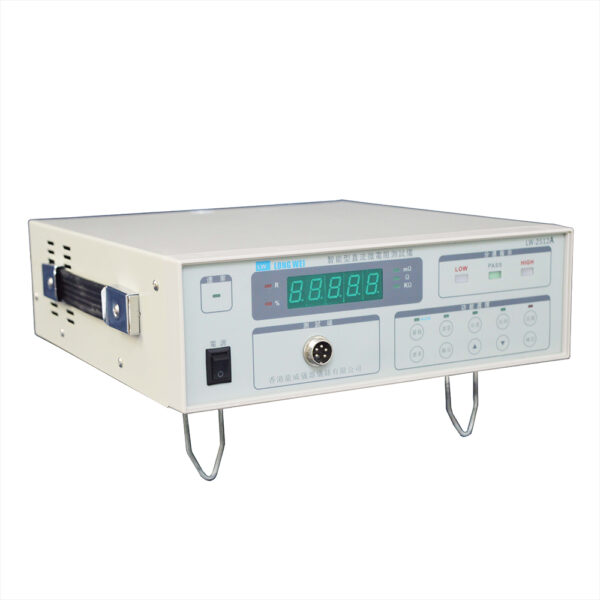

LW-2512A 1µΩ-200kΩ Intelligent DC Micro Ohm Meter

LW-2512A 1µΩ-200kΩ Intelligent DC Micro Ohm Meter

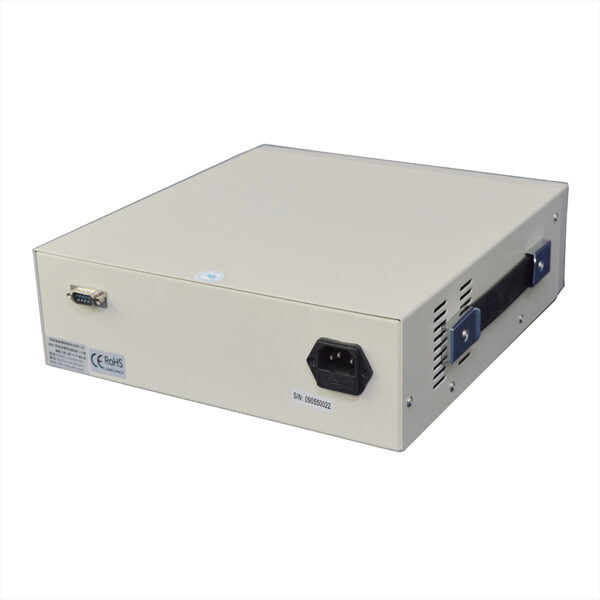

LW-2512A 1µΩ-200kΩ Intelligent DC Micro Ohm Meter - Image 2

LW-2512A 1µΩ-200kΩ Intelligent DC Micro Ohm Meter

  • Wide Resistance Range: Measures from 1µΩ to 200KMΩ across seven selectable ranges.
  • Variable Testing Speed: Choose between slow (5 readings/sec) and fast (10 readings/sec) modes.
  • High Measurement Accuracy: Offers precision of 0.02% ± 2 digits for reliable results.
  • Dual Display Options: View measurements in either resistance or percentage format.
  • Sorting Functionality: Categorizes results as LOW, PASS, or HIGH for easy interpretation.
  • Flexible Comparison Methods: Compare using either resistance values or percentage differences.
  • Direct Zeroing Functionality: Easy panel reset feature for quick adjustments.
  • Communication Interface Options: Includes sorting interface with optional RS-232 communication.
  • Responsive Touch Controls: Features heat-sensitive buttons for fast and easy operation.
Product Name: LW-2512A Category: Tag:
INQUIRY NOW
Model LW-2512A
Accuracy 0.02% ± 2 digits
Range mode Automatic or manual lock
Test speed 5 times/slow, 10 time/fast
Test range 1µΩ-200kΩ (Seven shift)
Test current 10µA-1A
Sorting function LOW, PASS, HIGH Judgement and buzzer
Test terminal Five core air outlets
Interface Sorting interface
Operating temperature & humidity 0-40℃  0-85%RH
Input voltage 200-240VAC   50-60Hz
Power dissipation < 25W
Dimension/ 280×89×280mm
Weight 1.5Kg
