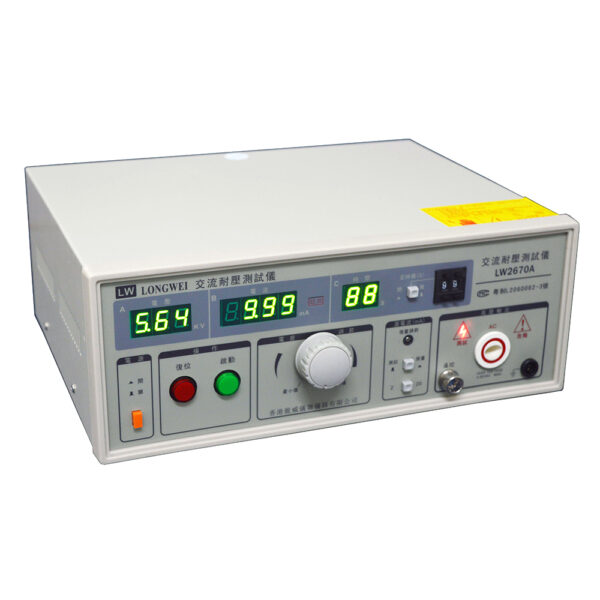

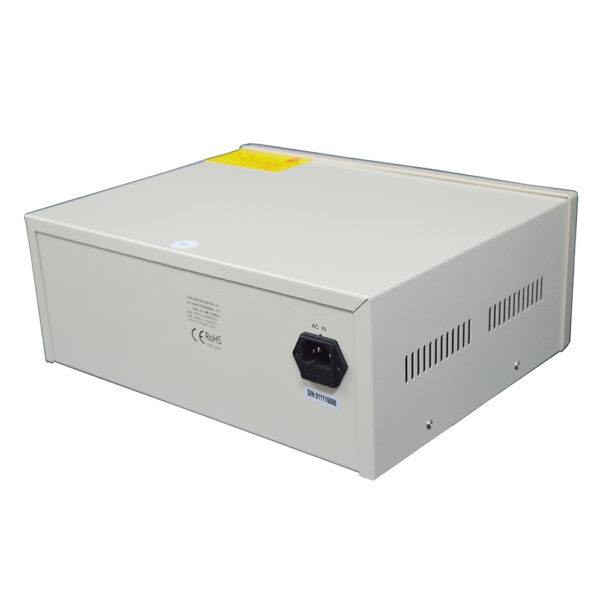

5kV/20mA AC Digital Hipot Tester

High voltage, small current, high accuracy
Leakage current, test time, continuous arbitrary setting, strong adaptability
Simultaneous display of measured actual values (voltage, current, time)
Can choose manual or remote test
High voltage breakdown protection, sound and light alarm, safe and reliable
Simple operation, suitable for production line
DC output can test small capacitance, high voltage silicon stack, transistor reverse voltage, multi-purpose for one machine

Product Name: LW2670A Category: Safety Tester Tag: Hipot Tester

Model	LW2670A
Test voltage	AC:0~5(KV)
Voltage precision	≤±5%
Leakage current range	AC:0~20(mA)/0~20(mA) two class /DC:0~20(mA)
Leakage current error	≤±5%
Output waveform	50Hz sine waveform
Time control	1s~99s/continuously setting and manual
Transformer capacity	500VA
Display mode	digital
Test criterion	Pass/reject unqualified audible and visual alarm
Condition	Relative temperature≤90RH,environment temperature0~40℃
Power	Static power<30VA
Dimension	350×135×280 mm
Weight	12kg
