Project Description

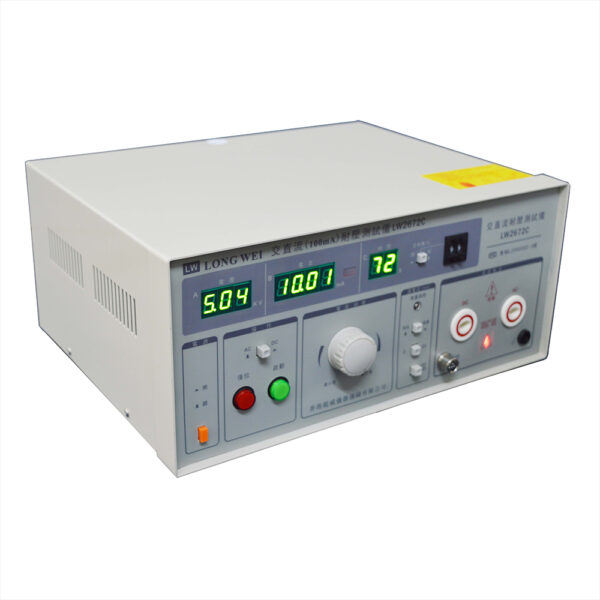

  • LW2672C Front View

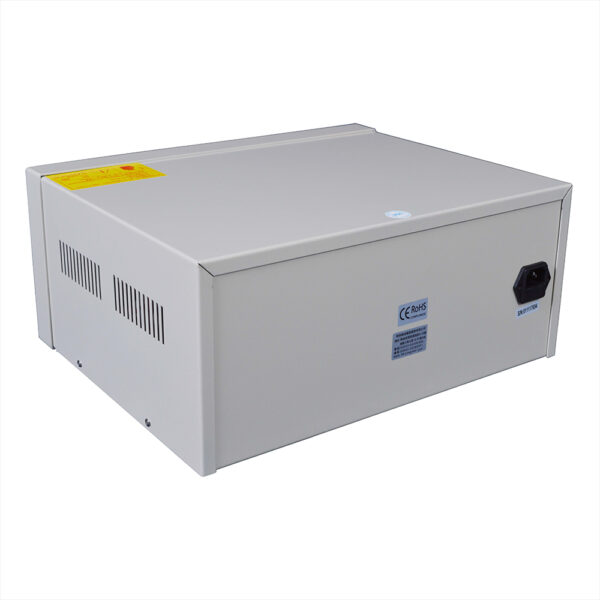

  • LW2672C Back View
  • LW2672C Package

Feature:

  1. High voltage, small current, high accuracy;
  2. Leakage current, test time, continuous arbitrary setting, strong adaptability;
  3. Simultaneous display of measured actual values (voltage, current, time);
  4. Can choose manual or remote test;
  5. High voltage breakdown protection, sound and light alarm, safe and reliable;
  6. Simple operation, suitable for production line;
  7. DC output can test small capacitance, high voltage silicon stack, transistor reverse voltage, multi-purpose for one machine
ParameterNameAC/DC withstand voltage tester
ModelLW2672B
Test voltageAC/DC: 0-5(KV)
Voltage accuracy≤ ±5%
Leakage current rangeAC: 0-2mA / 0-20(mA) / 0-100mA

DC: 0-2mA / 0-20(mA)

leakage current error≤ ±5%
Output waveform50Hz sine wave
Time control1s-99s / Continuous setting and manual
Transformer capacity750VA
Display modeDigital display
Test discriminationPass/failed, failed visual alarm
Work EnvironmentalRelative humidity ≤ 90% RH,  ambient temperature: 0 – 40 ℃
PowerStatic power < 30VA
WeightAbout 20kg
Dimension (W×H×D)375×190×280mm

Customize Parameter Of Your Own

Customization and small order are aceeptable

Move on and have a quotation
