Project Description

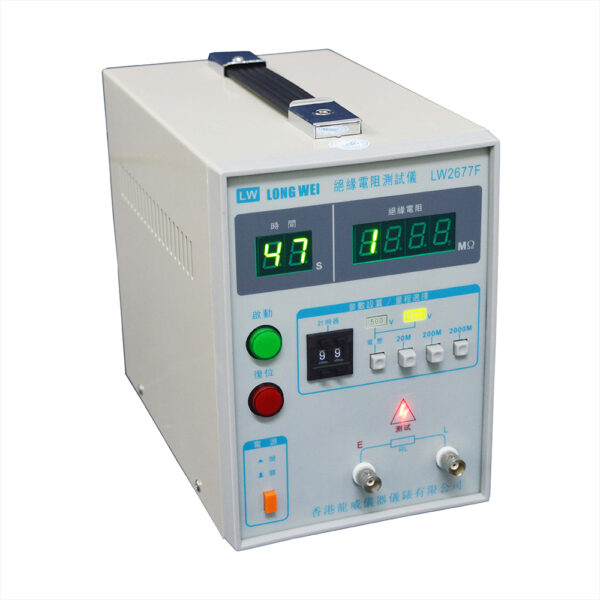

  • LW2677F Front View

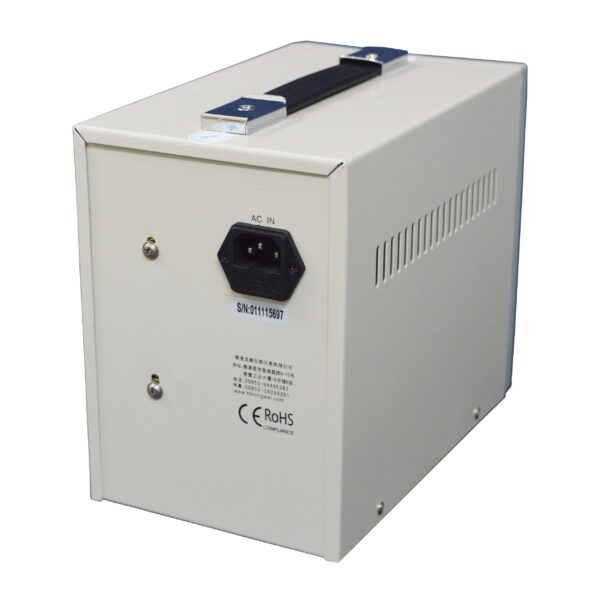

  • LW2677F Back View
  • LW2677F Package


  1. LW2677F insulation resistance tester is a testing instrument for testing the insulation properties of electronic components, complete machines, dielectric materials, etc. The sample is fast in testing, good in stability and easy to operate.
  2. Two common test voltages:
    DC / 500V ± 5%
    DC / 1000V ± 5%
  3. Test Range:
    500V file: 1MΩ ~ 1000MΩ
    1000V file: 2MΩ ~ 2000MΩ
  4. Test time 1-99s can be set arbitrarily;
Specification Name Insulation Resistance Tester
Model LW2677F
Test voltage DC: 500V/1000V
Resistance measurement range 500V Class: 1MΩ-1000MΩ
1000V Class: 2MΩ-2000MΩ
Test precision ≤ ±5% ± 5counts
Time control 1s-99s/continuously setting and manual
Display mode Digital
Condition Relative temperature ≤ 75RH, environment temperature 0-40℃
Weight About 1.8kg
Size (WxHxD) 140x192x220mm
Power AC  220V±10%  50Hz±5%
