Project Description

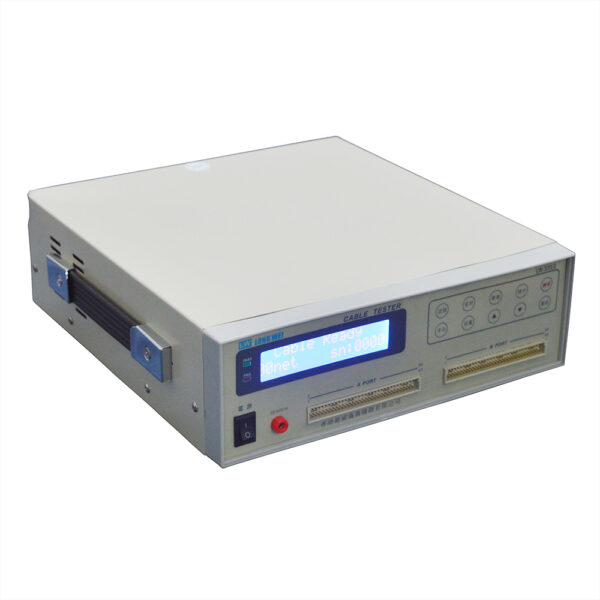

  • LW3310 Front View

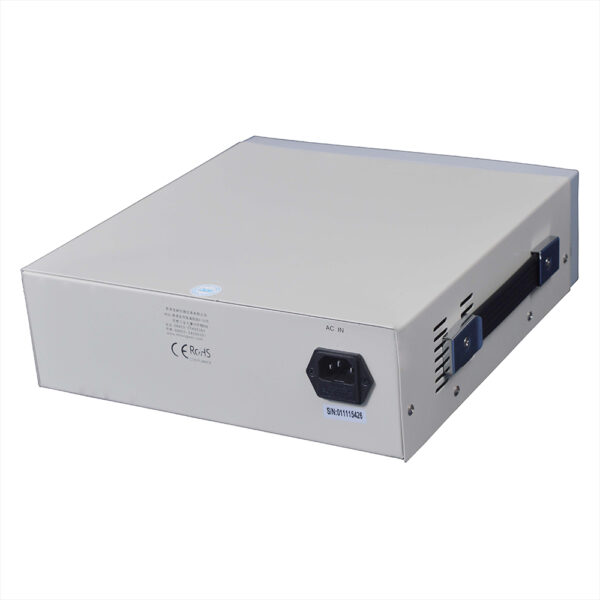

  • LW3310 Back View
  • LW3310 Package

LW-3310 wire tester is specially designed for various electronic cables, motor wires and connectors. Due to the wide variety of wires and connectors used in various fields, this instrument is only used for common wire testing. Widely used in computer, communication, medical, home appliances, motors, automobiles and other wiring inspection.

Features:

  1. Adopting intelligent judgment technology, which has the characteristics of fast test speed and accurate measurement. Can test short / open circuit judgment, misalignment recognition, instantaneous short / open circuit judgment, double-ended test, point finding function, maximum test points 128 points
  2. Adopts high-brightness large-character LCD display, and strives to be concise and clear from setting to test result display. In addition to the test results displayed on the display, there are sound and light alarms.
  3. Thermal touch keys, sensitive operation.
Parameter

Testing Pin 128 pin
Double-ended  A&B
Locate Function  Connect with the probe will display the number
Testing Subject Short circuit / Open circuit / Dislocation
Testing Mode Auto / Manual
Sway Tes Short circuit / Open circuit
Reading Data Self-learning standard wire samples and storing
Alarm Buzzer and LCD display
Statistics Function PASS quantity, Pass rate

Others

Working Condiction 0-40℃  0-85%RH
Input Power 200-240VAC   50-60Hz
Power Consumption < 25W
Dimension\Weight 280×89× 280mm / 1.5Kg
