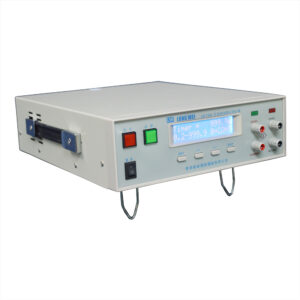

High Precision AC/DC Insulation Resistance Hipot Tester

  • Provide 10 groups memory setting, each group could choose four kinds of working modes, 3 steps;
  • 128x64 dot matrix LCD display, test mode is clear at glance;
  • Rising voltage gradient according to time, real-time analysis, looking for breakdown point;
  • Safe electrical function;
  • Lower limit on current Settings, intelligent alarm;
  • Arc detection function(1-9grades);
  • Provide remote PLC control interface and could choose RS232/GPIB communication port;
SKU: LW7142 Category: Tag:
Model   LW-7142
Voltage Endurance
Specification  Range  Analysis of degree  Basic accuracy
Output voltage   AC   0-5(kV)/20(mA)   0.01   ±(2% of setting+5V)
DC   0-6(kV)/7.5(mA)
Output frequency/waveform   50 or 60Hz, ±100ppm, sine wave, the distortion degree < 2%
The current upper limits setting   AC   0.1-12.009(mA)   0.01   ±(2% of setting+2counts)
DC   0-7500(Aµ)
The current lower limits setting   AC   0.1-9.999(mA)   0.01   ±(2% of setting+2counts)
DC   0-999.9(Aµ)
Rising time, second   0.1-999.9(s)   0.1   ±(0.1% +0.05counts)
Downtime, second   AC:0-999.9(s), DC:1-999.9(s)   0.1   ±(0.1% +0.05counts)
Test time, second   0,0.3-999.9(s)(0=continuously)   0.1   ±(0.1% +0.05counts)
Arc detection   9 grades (zero is off, one is the most sensitive)
Insulation resistance (IR)
Output voltage   0.1-1(kV DC)   0.01   ±(2% of setting+5V)
Insulation resistance limit   0-9999(MΩ) (zero is off)     ±(2% of setting+2C.) ≥ 500vdc
Insulation resistance lower limit   1-2000(MΩ)     ±(5% of setting+2C.) < 500vdc
Test time, second   0,0.5-999.9(s) (0=continuously)   0.1   ±(0.1% +0.05counts)
Other specification
Memory groups   10 groups of memory, 4 kinds of testing modes: W, I, W-I, I-W, each group could continuously test 3 steps
Peripheral remote control, PLC interface   Provide Pass, Fail, Processing Remote monitoring signals, Test, Stop contact
Security Protection   Overload or short circuit automatically cut off the output, light, and buzzer alarm
Display   128x64 dot matrix LCD display
Dimension   280×89x370mm
Weight   10kg
