100W AC-DC Thin Switch Mode Power Supply (SMPS)

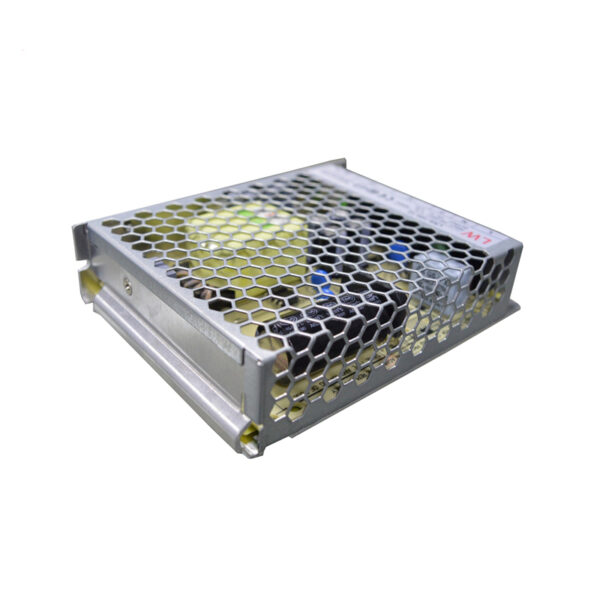

LRS-100W thin SMPS outward appearance
LRS-100W thin SMPS outward appearance
LRS-100W thin SMPS outward appearance

100W AC-DC Thin Switch Mode Power Supply (SMPS)

Product Name: LRS-100W Category: Tag:
INQUIRY NOW
ModelLRS-100-3.3LRS-100-5LRS-100-12LRS-100-15LRS-100-24LRS-100-36LRS-100-48
OutputDC Voltage3.3V5V12V15V24V36V48V
Rated Current20A18A8.5A7A4.5A2.8A2.3A
Current Range0-20A0-18A0-8.5A0-7A0-4.5A0-2.8A0-2.3A
Rated Power66W90W102W105W108W100.8W110.4W
Ripple & Noise100mVp-p100mVp-p120mVp-p120mVp-p150mVp-p200mVp-p200mVp-p
Voltage Adj. Range2.97-3.6V4.5-5.5V10.2-13.8V13.5-18V21.6-28.8V32.4-39.6V43.2-52.8V
Voltage Tolerance±3.0%±2.0%±1.0%±1.0%±1.0%±1.0%±1.0%
Line Regulation±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
Load Regulation±2.0%±1.0%±0.5%±0.5%±0.5%±0.5%±0.5%
Setup, Rise Time500ms,30ms/230VAC  500ms,30ms/115VAC (At full load)
Hold Up Time55ms/230VAC  10ms/115VAC (At full load)
InputVoltage Range85-264VAC    120-373VDC
Frequency Rage47-63Hz
Efficiency84.5%86.0%88.0%88.5%90.0%90.5%91.0%
AC Current1.9A/115VAC     1.2A/230VAC
Inrush CurrentCold start: 50A/230VAC
Leakage Current＜ 0.75mA/240VAC
ProtectionOverload110%-150% rated output power
Hiccup mode: recovers automatically after the fault condition is removed
Over Voltage3.8-4.45V5.75-6.75V13.8-16.2V18.75-21.75V28.8-33.6V41.4-48.6V55.2-64.8V
Hiccup mode: recovers automatically after the fault condition is removed
SafetyStandardCE, ROHS, CCC
EnvironmentWorking Condition-30～+70℃, 20～90% rated humidity, non-condensing
Storage Condition-40～+85℃, 10～95% rated humidity
Temp. Coefficient±0.03%/℃  (0～50℃)
Vibration Resistant10-500HZ 2G 10min/cycle, 60 minutes each for X, Y, Z axes
Dimension129*97*30 mm(L*W*H)
