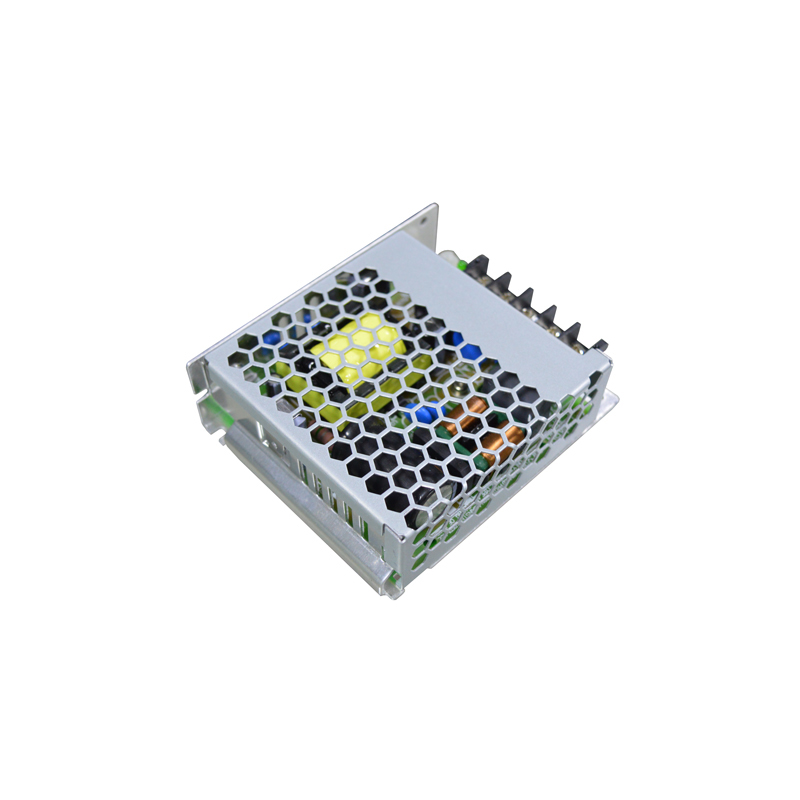

35W AC-DC Thin Switch Mode Power Supply (SMPS)

SKU: LRS-35W Category: Tag:
Model LRS-35-5 LRS-35-12 LRS-35-15 LRS-35-24 LRS-35-36 LRS-35-48
Output DC Voltage 5V 12V 15V 24V 36V 48V
Rated Current 7A 3A 2.4A 1.5A 1A 0.8A
Current Range 0-7A 0-3A 0-2.4A 0-1.5A 0-1A 0.8A
Rated Power 35W 36W 36W 36W 36W 38.4W
Ripple & Noise 80mVp-p 120mVp-p 120mVp-p 150mVp-p 200mVp-p 200mVp-p
Voltage Adj. Range 4.5-5.5V 10.2-13.8V 13.5-18V 21.6-28.8V 32.4-39.6V 43.2-52.8V
Voltage Tolerance ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Setup, Rise Time 1000ms,20ms/230VAC  2000ms,30ms/115VAC (At full load)
Hold Up Time 30ms/230VAC  12ms/115VAC (At full load)
Input Voltage Range 85-264VAC/120-370VAC
Frequency Rage 47-63Hz
Efficiency 82% 86% 86% 88% 88% 89%
AC Current 0.7A/115VAC     0.42A/230VAC
Inrush Current Cold start: 45A/230VAC
Leakage Current < 0.75mA/240VAC
Protection Overload 110%-150% rated output power
Hiccup mode: recovers automatically after the fault condition is removed
Over Voltage 5.75-6.75V 13.8-16.2V 18.75-21.75V 28.8-33.6V 41.4-48.6V 55.2-64.8V
Hiccup mode: recovers automatically after the fault condition is removed
Safety Standard CE, ROHS
Environment Working Condition -30~+70℃, 20~90% rated humidity, non-condensing
Storage Condition -40~+85℃, 10~95% rated humidity
Temp. Coefficient ±0.03%/℃  (0~50℃)
Vibration Resistant 10-500HZ 2G 10min/cycle, 60 minutes each for X, Y, and Z axes
Dimension 99*82*30 mm(L*W*H)
